TikZJax renders TikZ and supported TikZ-based LaTeX packages directly in the browser.
It focuses on singular TikZ-based LaTeX packages, that do NOT already exist on:

MathJax,
neither on other main web drawing libraries, e.g. Graphviz, or Mermaid, etc..

It can be used inside:

standalone HTML pages;
MkDocs documentation;
Material for MkDocs sites;
static websites;
other browser-based documentation systems.

TikZJax runs TeX through WebAssembly inside Web Workers. It does not require a server-side LaTeX installation or a remote rendering service.

Documentation and test projects

Resource	Link
Documentation and live demonstration site	rod2ik.github.io/tikzjax
Minimal MkDocs test repository	rod2ik/minimal-mkdocs-tikzjax
Source repository	rod2ik/tikzjax
npm package	@rod2ik/tikzjax
jsDeliver CDN	@rod2ik/tikzjax

The minimal MkDocs repository can be cloned and run locally to test the integration in an isolated project.

Examples

Pure TikZ

tkz-tab

Physics

Circuitikz

Kinematikz

Chemfig

Yquant

Tikz-feynhand

Braids

Pgf-spectra

Project lineage

rod2ik/TikZJax is based on the historical great works 👏👏👏 of:

kisonecat/tikzjax, created by Jim Fowler;
drgrice1/tikzjax, created by Glenn Rice.

Those projects are themselves based on browser ports of TeX and DVI conversion tools.

This project uses its own related forks:

The original projects provided the foundation for rendering TikZ in a browser. This fork preserves that capability while adding a larger configuration, package, documentation, performance, and integration layer.

Visual feature badges

The following Shields badges identify the origin of the features described on this page:

inherited from the historical TikZJax projects;
inherited behavior substantially expanded in this fork;
functionality added by rod2ik/TikZJax.

The badges are ordinary linked images generated by Shields.io and render correctly in Material for MkDocs.

Supported optional packages

The distributed browser runtime includes the files required by all of these optional packages:

$tkz-tab$ $physics$ $circuitikz$ $chemfig$ $yquant$ $tikz-feynhand$ $pgf-spectra$ $kinematikz$

[
    "tkz-tab",
    "physics",
    "circuitikz",
    "chemfig",
    "yquant",
    "tikz-feynhand",
    "pgf-spectra",
    "kinematikz"
]

The runtime files are available, but packages are loaded into a diagram only when declared globally or with data-tex-packages.

<script
  type="text/tikz"
  data-tex-packages="chemfig"
>
\chemfig{H_3C-CH_2-OH}
</script>

See the complete examples catalogue.

What is different in `rod2ik/TikZJax`?

Core rendering

Browser-side TikZ rendering through TeX compiled to WebAssembly.
Support for <script type="text/tikz"> source blocks.
DVI conversion to browser-compatible SVG and HTML.
The original TikZ rendering pipeline has been refactored into a modern ESM-based project.
Runtime TeX assets and optional dependencies are organized for dynamic browser loading.

LaTeX and diagram support

Native support for tkz-tab variation tables and sign tables.
Support for optional LaTeX packages loaded at runtime.
Support for package-specific examples including:
- physics;
- circuitikz;
- chemfig;
- yquant;
- tikz-feynhand;
- pgf-spectra;
- kinematikz.
Support for additional TikZ libraries such as braids.
Per-diagram TeX package declarations with data-tex-packages.
Per-diagram TikZ library declarations with data-tikz-libraries.
Per-diagram custom LaTeX preambles with data-add-to-preamble.
Global and local tkz-tab configuration with public helper macros and automatic native defaults.

Configuration

Global configuration through window.TikzJaxOptions.
Runtime partial updates through window.TikzJaxConfigure().
Recursive configuration merging for plain objects.
Array merging with duplicate removal.
Separate global and local configuration scopes.
Per-diagram data-* options now cover packages, libraries, preambles, timeouts, retries, caching, diagnostics, loader dimensions, and fallback images.
Complex local configuration through data-tikzjax-options.
Local nested TeX configuration through data-tex.

MkDocs and documentation integration

Native recognition of fenced tikzjax Markdown blocks.
Compatibility with Material for MkDocs light and dark palettes.
Compatibility with Material admonitions.
Compatibility with collapsible details and admonitions.
Compatibility with Material content tabs.
Detection of diagrams added through client-side navigation.
Centralized DOM observation for dynamically inserted content.
Delayed rescanning and reprioritization when hidden content becomes visible.
Generated wrappers include mathjax_ignore to reduce conflicts with MathJax rescans.

Themes

Automatic light and dark theme adaptation for generated SVGs.
Detection of common theme attributes such as:
- data-theme;
- data-bs-theme;
- data-color-scheme;
- data-md-color-scheme.
Support for class-based theme detection.
Any valid CSS selector can identify one or more configured theme targets.
Optional standalone target styling with configurable light and dark background and text colors.
Target styling is disabled by default so existing integrations, including MkDocs Material, keep control of page-level colors.
Dark-mode adaptation of explicit chromatic SVG fills, strokes, and text colors through theme.adaptiveColors, enabled by default.
Perceptual-lightness adaptation keeps colors in the same visual family while producing brighter and more vivid dark-mode variants.
Configurable red, green, and blue hue shifts, including a default shift that moves deep blues towards a clearer sky-blue range.
Automatic foreground/background contrast correction can darken detected filled shapes behind text, bright outlines, or small light-neutral vector details when their contrast is below the configured minimum ratio.
Light mode restores the original chromatic SVG values, while the existing black-and-white normalization remains unchanged.
Optional fallback to prefers-color-scheme.
Dynamic updates of existing SVGs when the site theme changes.
Cached SVGs are adapted to the current theme after insertion without recompiling TeX.

Rendering performance

Adaptive bounded Web Worker pool.
Parallel rendering of independent diagrams.
Configurable maximum worker count.
CPU-aware worker-pool sizing.
Optional device-memory-aware worker-pool sizing.
Lazy worker initialization only when uncached work exists.
One active TeX job per worker.
Global rendering queue shared by all diagrams.
Viewport-based render priority.
Reprioritization when diagrams become visible.
Dependency-cache affinity as a worker-selection tie-breaker.
Pending-job deduplication for identical diagrams.
Partial worker-pool recovery when one worker fails.

Caching

Persistent browser-side SVG caching through IndexedDB.
Cache identities include the exact source and effective worker dataset.
Pending identical diagrams can share one active compilation.
Each worker retains its initialized WebAssembly runtime.
Each worker maintains its own decompressed TeX dependency cache.
Cache bypass can be enabled for an individual diagram with data-disable-cache.

Reliability and diagnostics

Finite rendering timeouts.
Configurable retry handling.
Worker restart after failure.
Worker initialization retries.
Failed workers can be replaced without stopping healthy workers.
Per-diagram TeX console output with data-show-console.
Per-diagram timing diagnostics with data-debug-timings.
Custom global fallback error images.
Custom per-diagram fallback images.
Several fallback image designs are included in the package.
A tikzjax-load-finished event is dispatched for each inserted SVG.

Feature comparison

Feature	Historical TikZJax	`rod2ik/TikZJax`
Browser-side TikZ rendering		Yes
`<script type="text/tikz">` blocks		Yes
`tkz-tab` support	—
Optional runtime LaTeX packages	—
Fenced MkDocs `tikzjax` blocks	—
Global configuration API	—
Per-diagram package configuration	—
Per-diagram TikZ libraries	—
Light and dark theme adaptation	—
Adaptive explicit SVG colors	—
Automatic foreground/background contrast	—
Configurable standalone palettes	—
Dynamic Material theme updates	—
Material tabs and admonitions	—
Adaptive worker pool	—
Parallel TeX rendering	—
Viewport-priority scheduling	—
Pending-job deduplication	—
IndexedDB SVG cache
Timeout and restart handling
Custom fallback images	—
TeX console diagnostics	—
Worker timing diagnostics	—

Quick installation

jsDelivr

<script src="/assets/javascripts/tikzjax.config.js"></script>

<link
  rel="stylesheet"
  href="https://cdn.jsdelivr.net/npm/@rod2ik/tikzjax@1.5.0/dist/fonts.min.css"
>

<script
  src="https://cdn.jsdelivr.net/npm/@rod2ik/tikzjax@1.5.0/dist/tikzjax.min.js"
  defer
></script>

unpkg

<script src="/assets/javascripts/tikzjax.config.js"></script>

<link
  rel="stylesheet"
  href="https://unpkg.com/@rod2ik/tikzjax@1.5.0/dist/fonts.min.css"
>

<script
  src="https://unpkg.com/@rod2ik/tikzjax@1.5.0/dist/tikzjax.min.js"
  defer
></script>

npm

npm install @rod2ik/tikzjax

Yarn

yarn add @rod2ik/tikzjax

See:

Recommended configuration

window.TikzJaxOptions = {
    renderTimeout: 30000,
    maxRetries: 1,
    restartWorkerOnFail: true,

    workerPool: {
        enabled: true,
        maxWorkers: 3,
        reserveCpuCores: 1,
        useDeviceMemory: true,
        initializationRetries: 1
    }
};

This enables:

bounded parallel rendering;
adaptive worker-pool sizing;
worker initialization retries;
rendering retries;
failed-worker replacement;
finite rendering timeouts.

See Configuration.

Basic TikZ example

HTML syntax

, retained and extended:

<script type="text/tikz">
\begin{tikzpicture}
    \draw[->,very thick]
        (0,0) -- (4,0)
        node[right] {$x$};

    \draw[->,very thick]
        (0,0) -- (0,3)
        node[above] {$y$};

    \draw[very thick]
        (0,0) -- (3,2);
\end{tikzpicture}
</script>

On the documentation site, TikZJax replaces this source with a generated SVG.

MkDocs fenced syntax

in rod2ik/TikZJax:

```tikzjax
\begin{tikzpicture}
    \draw[->,very thick]
        (0,0) -- (4,0)
        node[right] {$x$};

    \draw[->,very thick]
        (0,0) -- (0,3)
        node[above] {$y$};

    \draw[very thick]
        (0,0) -- (3,2);
\end{tikzpicture}
```

Fenced blocks use globally configured packages and TikZ libraries.

Use an HTML source block when local data-* configuration is required.

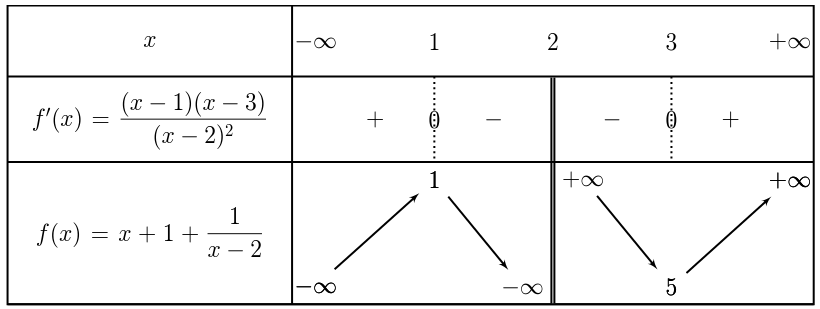

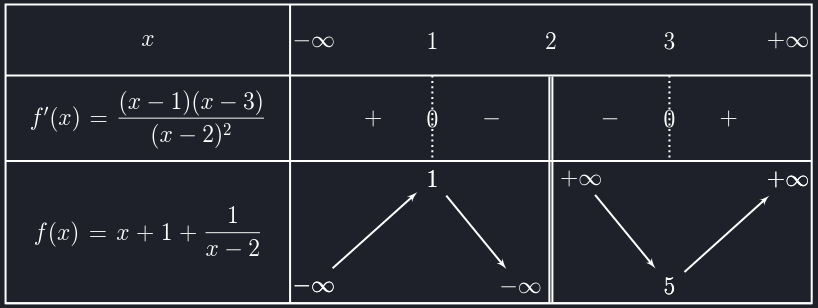

`tkz-tab` example

Native tkz-tab rendering is in rod2ik/TikZJax.

<script
  type="text/tikz"
  data-tex-packages="tkz-tab"
  data-tkz-tab='{
    "autoApply": true,
    "lineWidth": "1.2pt",
    "font": "\\Large",
    "firstColumnWidth": 6,
    "espcl": 3
  }'
  data-width="760"
  data-height="260"
>
\begin{tikzpicture}
    \tkzTabInit
        {
            $x$/1.5,
            $f'(x)=3(x+1)(x-2)$/1.5,
            $f(x)=x^3-3x^2-6x+1$/2.5
        }
        {
            $-\infty$,
            $-1$,
            $2$,
            $+\infty$
        }

    \tkzTabLine{
        ,+,
        z,
        -,
        z,
        +,
    }

    \tkzTabVar{
        -/$-\infty$,
        +/$3$,
        -/$-15$,
        +/$+\infty$
    }
\end{tikzpicture}
</script>

Package loading and table configuration are separate:

data-tex-packages="tkz-tab"
data-tkz-tab='{ ... }'

With autoApply enabled, the source does not need to repeat native lw, lgt, espcl, or node-font settings.

See the tkz-tab examples.

Optional package example

Per-diagram package loading is .

<script
  type="text/tikz"
  data-tex-packages="physics"
>

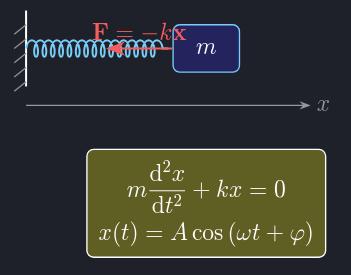

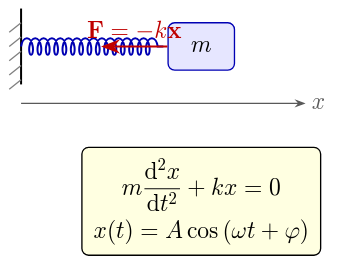

\begin{tikzpicture}
    \node[
        draw,
        rounded corners,
        inner sep=8pt
    ] {
        $\vb{F}=m\vb{a}$
    };
\end{tikzpicture}
</script>

Several packages or package options can be declared with compact JSON:

<script
  type="text/tikz"
  data-tex-packages='{"physics":"","xcolor":"dvipsnames"}'
>
\begin{tikzpicture}
    \node[text=NavyBlue] {
        $\vb{F}=m\vb{a}$
    };
\end{tikzpicture}
</script>

See Global and Local Configuration.

TikZ library example

Per-diagram TikZ libraries are .

<script
  type="text/tikz"
  data-tikz-libraries="arrows.meta,positioning"
>
\begin{tikzpicture}
    \node (A) {
        Start
    };

    \node[
        right=2cm of A
    ] (B) {
        End
    };

    \draw[-{Stealth}]
        (A) -- (B);
\end{tikzpicture}
</script>

TikZ libraries and LaTeX packages use separate configuration fields.

For example, braids is a TikZ library:

data-tikz-libraries="braids"

Light and dark themes

Theme adaptation is .

TikZJax can update already-rendered and cached SVGs after a theme change without recompiling TeX.

Adaptive explicit colors

Explicit chromatic SVG colors are adapted automatically in Dark mode through theme.adaptiveColors, which is enabled by default.

Instead of applying a literal RGB negative, TikZJax raises perceptual lightness while keeping each color in the same visual family. Saturation can also be reinforced so dark blues, reds, greens, and other colors become clear, vivid dark-mode variants rather than pale greyish colors.

The red, green, and blue color families have configurable hue shifts. By default, deep blues are shifted towards a clearer sky-blue range.

The main defaults can be written explicitly as:

window.TikzJaxOptions = {
    theme: {
        adaptiveColors: {
            enabled: true,
            strength: 1,

            hueShift: {
                red: 0,
                green: 0,
                blue: -40
            },

            contrast: {
                enabled: true,
                minimumRatio: 4.5
            }
        }
    }
};

This configuration block is optional because these values are already enabled by default.

In Light mode, TikZJax restores the original chromatic SVG values. The existing special handling of black, white, currentColor, transparent paints, gradients, and patterns remains separate and unchanged.

Set theme.adaptiveColors to false to disable explicit-color adaptation and its contrast stage.

Automatic foreground/background contrast

In Dark mode, TikZJax can estimate the visible contrast in three common SVG arrangements:

text painted over a filled shape;
a bright neutral stroke belonging to the same element as its background fill;
a small bright-neutral vector detail painted over a larger filled shape.

If the ratio is below theme.adaptiveColors.contrast.minimumRatio, the detected background fill is darkened until the requested contrast is approached.

The default requested ratio is 4.5. The foreground text, outline, or vector detail is not replaced by this contrast stage. Chromatic vector accents, such as a red target point, do not trigger the bright-neutral heuristic, and page components outside generated TikZJax SVGs are not restyled.

No additional configuration option is required for this expanded foreground detection.

A background modified by this stage can be identified in the generated SVG by:

data-tikzjax-contrast-adjusted="true"

Material for MkDocs

A Material configuration can use:

window.TikzJaxOptions = {
    theme: {
        selector: "body",
        applyTargetStyles: false,
        attribute: "data-md-color-scheme",
        darkValue: "slate",
        lightValue: "default",
        fallbackTheme: "light",
        followSystemTheme: true
    }
};

applyTargetStyles defaults to false. Material therefore remains responsible for the page background, text, navigation, cards, code blocks, tables, and admonitions.

The adaptive-color and SVG-contrast stages still apply to TikZJax diagrams in Dark mode; they do not require TikZJax to restyle the Material page itself.

Standalone HTML

A custom standalone page can ask TikZJax to style one or more selected targets:

window.TikzJaxOptions = {
    theme: {
        selector: ".app",
        applyTargetStyles: true,

        lightBackgroundColor: "#ffffff",
        lightTextColor: "#000000",

        darkBackgroundColor: "#1b1e2b",
        darkTextColor: "#ffffff",

        darkClass: "dark",
        lightClass: "light",

        attribute: "data-theme",
        darkValue: "dark",
        lightValue: "light"
    }
};

theme.selector accepts any valid CSS selector. Every matching target receives the resolved background and text colors only when applyTargetStyles is enabled.

See Light and Dark Themes and the standalone advanced example.

Parallel rendering

The adaptive Web Worker pool is .

global render queue
    |
    +-- worker 1 --> diagram A
    +-- worker 2 --> diagram B
    +-- worker 3 --> diagram C

The pool:

renders independent diagrams concurrently;
limits the maximum number of workers;
reserves CPU capacity for the browser;
can account for device memory;
initializes workers lazily;
replaces failed workers;
prioritizes visible diagrams;
avoids compiling identical pending jobs several times.

See Parallel Rendering and the Worker Pool.

Cache and performance

Browser-side SVG caching is an historical capability.

The current implementation also provides:

rendering identities based on exact source and effective options;
pending-job deduplication;
worker-local TeX dependency caches;
worker runtime reuse;
viewport-priority scheduling;
local cache bypass.

Disable the persistent SVG cache for one debugging block with:

data-disable-cache="true"

See Cache and Performance.

Error handling

Timeout, retry, and worker-restart behavior are .

Custom fallback images are .

window.TikzJaxOptions = {
    renderTimeout: 30000,
    maxRetries: 1,
    restartWorkerOnFail: true,

    brokenImageSrc:
        "https://cdn.jsdelivr.net/npm/@rod2ik/tikzjax@1.5.0/dist/assets/broken-image.svg"
};

A local fallback can be configured with:

data-broken-image-src="/assets/images/local-error.svg"

See Fallback and Error Images.

Intentionally invalid example

The following source is intentionally invalid so that the fallback path can be tested.

Using a complete document with an undefined command produces a more predictable failure than omitting an environment terminator.

<script
  type="text/tikz"
  data-disable-cache="true"
  data-show-console="true"
>
\begin{tikzpicture}
    \ThisCommandDoesNotExist
\end{tikzpicture}
</script>

The configured fallback image should appear after all permitted attempts fail.

Documentation

Getting started

Rendering and performance

Appearance and errors

Reference and examples

Credits

TikZJax exists because of the foundational work of the original TikZJax, Web2JS, and DVI-to-HTML projects and their contributors.

rod2ik/TikZJax preserves the original browser-side TikZ rendering concept while adding functionality for:

tkz-tab;
optional package loading;
global and local configuration;
MkDocs fenced blocks;
light and dark themes, including adaptive chromatic colors and automatic foreground/background SVG contrast correction;
adaptive parallel rendering;
dynamic content;
expanded caching;
diagnostics;
fallback images.

Please also visit and credit the upstream projects:
